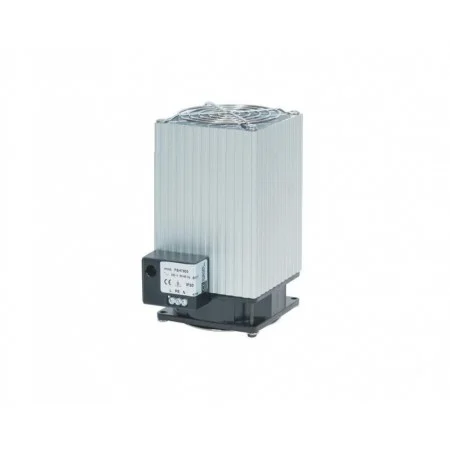

Ventilatorkachel 500W

Fan heaters

500W

FSHT

FAN ASSISTED, RESISTOR HEATERS

Features Unit FSHT500

Heating Capacity W 500

Power supply V/Hz 230/50-60

Max. current A 2.4

Heating element type - Resistor

Thermal protection - Thermal cut out fuse in case of fan failure

Radiator - Extruded aluminium profile, anodized

Axial fan -

Ball bearing, service life 50.000 hrs at 25°C (77°F)

air flow rate 35 m³/h, free flow air flow rate 44 m³/h, free flow

Signalling Green LED power ON

Electrical connections - 3 screw terminals for stranded or rigid wire 2.5 mm²

Protection class IEC - Class I, earthed

Protection degree EN60529 - IP20

Operating temperature °C (°F) -25/+70 (-13/+158)

Storage temperature °C (°F) -25/+70 (-13/+158)

Mounting - Clip for mounting on DIN rail 35 mm EN50022

Installation position - Best performance with vertical installation

Dimensions HxWxD mm 165x112x82

Weight (with packaging) kg 0.97(1.04)

Conformity - CE

Accessories

Thermostat NC 0-60°C THR02

Double thermostat NC 0-60°C NO 0-60° THRV22

Termoigrostato 0-60°C 30-90%RH ETUH22
